An Analysis of U.S. and World Oil Production Patterns Using Hubbert-Style Curves

by Al Bartlett, originally published in Mathematical Geology, Volume 32, Number 1 (January, 2000)

Reprinted by permission

A quantitative analytical method, using a spreadsheet, has been developed which allows the determination of values of the three parameters that characterize the Hubbert-style Gaussian error curve that best fits the conventional oil production data both for the U.S. and the world. The three parameters are: the total area under the Gaussian which represents the estimated ultimate (oil) recovery (EUR), the date of the maximum of the curve, and the half-width of the curve. The "best fit" is determined by adjusting the values of the three parameters to minimize the root-mean-square deviation (RMSD) between the data and the Gaussian. The sensitivity of the fit to changes in values of the parameters is indicated by an exploration of the rate at which the RMSD increases as values of the three parameters are varied from the values that give the best fit. The results of the analysis are: 1) the size of the U.S. estimated ultimate recovery (EUR) of oil is suggested to be 2.22 x 10¹¹ barrels (0.222 trillion bbl) of which approximately three-fourths appears to have been produced through 1995; 2) if the world EUR is 2.0 x 10¹² bbl, (2.0 trillion bbl) a little less than half of this oil has been produced through 1995, and the maximum of world oil production is indicated to be in 2004; 3) each increase of one billion barrels in the size of the world EUR beyond the value of 2.0 x 10¹² bbl can be expected to result in a delay of approximately 5.5 days in the date of maximum production; 4) alternate production scenarios are presented for EURs of 3.0 and 4.0 trillion bbl.

Introduction

One of the best known products of the work of M. King Hubbert is the "Hubbert curve" (Hubbert, 1974) which empirically approximates the full cycle of the growth, peaking, and subsequent decline to zero of the "production" [(quantity / year) vs. year] of a finite non-renewable resource. The main central portion of a representative Hubbert-style curve is shown by the solid line of Figure 1.

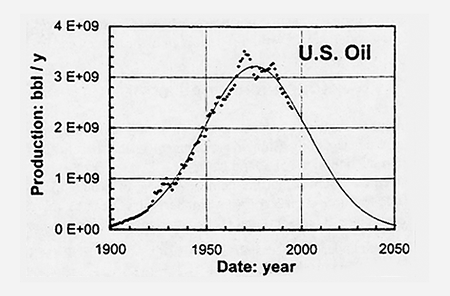

Figure 1. The data for the production of oil in the U.S. are shown, along with the primary Gaussian. This is the Gaussian that has the smallest RMSD and hence is the best fit to the data. Each major square has the units of 1 x 10⁹ bbl / y multiplied by 20 y, equals 20 x 10⁹ barrels of oil. The values of the three parameters that characterize this Gaussian are given in Table 1.

This analysis is the result of asking the questions,

1) What is the maximum amount of information one can gain from analytical comparisons of a Hubbert-style curve with data on historical oil production for the U.S. and for the world?
2) How sensitive are the results of this analysis to changes in important parameters?
3) How do the results of the analysis compare with the results of geological studies of the probable EUR?

Other Curves

In his original work Hubbert fitted production data to the derivative of the Logistic curve, which is similar in shape to the Gaussian. (Hubbert, 1982) The analysis described here was done with both curves to allow comparison of the results. The differences in the results were less than the root-mean-square deviations of the fits, so that the results did not indicate a clear preference for either curve. Both curves are widely understood, but the Gaussian curve was used because the analysis is simpler in execution and interpretation.

No attempt was made to explore other similar curves to see if one could find a curve that gave a significantly improved fit to the data, nor was there any attempt to find improved fits by using superposition of several Gaussian curves representing the production patterns of several different regions or provinces.

Background for the method

An analytical method will be outlined which allows one to determine the values of the three parameters of the Hubbert curve that gives the "best fit" to the historical data on oil production in the U.S. and world.

This method assumes that the complete curve of production vs. time of a non-renewable resource such as oil (the Hubbert curve) can be represented by a Gaussian error curve (Gaussian) which is characterized by three parameters:

1) The area under the Gaussian is the size Q_oo of the EUR, (U.S. or world), expressed in barrels, (bbl) ;
2) The time t_M is the date (year) of the peak of the Gaussian;
3) The parameter S, (years) is a measure of the width of the Gaussian.

Logic suggests that it is best to express quantities of oil in the SI units of cubic meters or joules of energy. However in the lingua franca of the world oil business, the "barrel" (bbl) is the standard unit of quantity. The following conversion factors may be used to convert barrels to cubic meters or barrels of oil to joules of energy.

- One barrel has the volume of 0.15899... cubic meters.
- One barrel of oil has an energy content of approximately 5.9 x 10⁹ joules.

Production data have only approximately followed the Gaussian pattern in the past. However, as Hubbert pointed out, over the long run, production of oil started initially at zero, will rise to one or more maxima and then, at some time in the future, will return to zero. Because of these properties, the Gaussian can always be used as an approximate representation of the curve of production vs. time of oil or of any non-renewable resource. The actual production curves will be modified by economic, geological, political, technological, and other factors, which may result in a deterioration of the quality of the fit between the data and the Gaussian, but the role of these important factors is limited to changing the quality of this fit.

As applied to oil, the method: does the following:

1) Uses the following data:
(a) the history of the production (bbl / y) of oil vs. time;
(b) the geologically estimated EUR, Q_oo ;
2) Uses all of the available annual oil production data, or a subset of the data;

The longer the time span covered by the data, the greater may be the precision of the fit between the Gaussian and the data.
3) Is quantitative and analytical, using the accepted mathematical criterion that the Gaussian that is the "best fit" to the data is the one for which the root- mean-square deviation (RMSD) between the historical data and the Gaussian has a minimum value;
4) Is mathematically reproducible;
5) Is easily updated as more production data become available;
6) Produces numerical values (primary values) of the three parameters of the particular Gaussian that is the best fit to the data; this Gaussian is the "primary Gaussian."
7) Allows one to explore the "goodness" of the fit of the Gaussian to the data by determining how rapidly the RMSD of the best fit deteriorates (increases) with changes in any of the three parameters from their primary values;
8) Can be used to determine "best fit" values for two of the parameters of the Gaussian, along with the associated RMSD, when the third parameter is given an arbitrary numerical value other than its "best fit" (primary) value. The Gaussians calculated from these values of the three parameters are "secondary Gaussians."
9) Can be used to determine a "best fit value" for one of the parameters of the Gaussian, along with the value of the associated RMSD, when the second and third parameters are given arbitrary values other than their primary values.
10) (Except for the numerical value of Q_oo) is completely decoupled from theory, judgement, or speculation about the future consequences of complex geological, technological, economic, or political factors that can affect annual production.

This decoupling (10) need not be of concern because all of these factors were present and operating in the real-world data that Hubbert used when he recognized that the production curve had an approximately Gaussian shape. These factors can affect the quality of the fit between the Gaussian and the historical data.

Definitions

Let us define quantities:

t = date (year)

t_M = the date of the maximum of the Gaussian Hubbert curve

P = the production of oil in barrels per year, (bbl / y)

Q = the estimated amount of oil remaining in the ground. (bbl)

Q_oo = the integrated total production (bbl) as the time t approaches infinity. This is called the "Estimated Ultimate Recovery," or EUR.

W = the full-width at half-height of the Gaussian

W = [ (8 ln 2)^0.5 S ] = 2.355... S

where S is a convenient width parameter

Guassian curves

As it is applied to the oil analysis, the Gaussian curve for the annual production vs. time is given by:

P = - dQ / dt = [Q_oo / (S (2 p) ^1/2)] exp [ - (t_M - t)2 / (2 S²) ]

This equation for P contains the three parameters: Q_oo, t_M and S.

Method of analysis

One seeks the values of the three parameters that characterize the particular Gaussian which is the best fit to a set of historical oil production data. First, one assumes reasonable approximate values of the three parameters and uses the spreadsheet to calculate the year-by-year values of the Gaussian that is prescribed by these assumed values. The root mean square deviation (RMSD) between the assumed Gaussian and the historical data points is then calculated and is displayed.

The values of the three parameters of the Gaussian are then varied systematically until the RMSD is found empirically to have a minimum value. The Gaussian characterized by this minimum RMSD is the "primary Gaussian" which gives the best fit to the data. The values of the parameters that yield the primary Gaussian are then the "primary values" of the parameters.

The Gaussian applied to U.S. oil production

Figure 1 shows the plot of the U.S. oil production data (USEIA, 1995) along with the primary Gaussian. Table I tabulates the results of the analysis.

The analysis suggests that approximately three fourths (77%) of the EUR, (Q_oo = 222.2 x 109 bbl) in the 50 states had been produced by the end of 1995.

This EUR gives a best fit that is significantly larger than the value found by Hubbert (1982) who based his analysis on U.S. production data for the lower 48 states through 1980. Hubbert's EUR was 161.8 x 109 bbl. (p. 90)

Uncertainty and sensitivity of the model

Hubbert gave little detailed discussion of the magnitudes of the analytical uncertainties in the quantities he derived from his curve fitting. The method used here allows the quantitative exploration of these uncertainties.

The overall quality of the fit between the data and the primary Gaussian is indicated by the fact (Table 1) that the RMSD between the primary Gaussian and the data is 3.2% of the height of the Gaussian maximum.

To explore the sensitivity of the fit of the data to the primary Gaussian, one can give two of the three parameters their primary values of Table 1, and then one can systematically change the value of the third parameter to explore how the RMSD changes with changes in the third parameter. For example, when the parameters S and t have their primary values, how sensitive is the RMSD to changes in the parameter Q_oo, (the EUR)? The answer to this question is shown in the upper curve of Fig. 2, where one sees that increasing Q_oo by 8.1%, from its primary value of 222.2 x 10⁹ bbl to 240 x 10⁹ bbl, causes the RMSD to increase approximately quadratically from 0.103 x 10⁹ to 0.175 x 10⁹ bbl / y, an increase of approximately 70%.

A second investigation is to give one parameter a value other than its primary value and then vary the values of the other two parameters until one finds a secondary minimum RMSD. To illustrate: if one changes the value of Q_oo from its primary value to 240 x 10⁹ bbl, what is the RMSD if S and t_M are then varied from their primary values until a new minimum RMSD is found? When this is done, the resulting secondary minimum is characterized by t_M = 1977.5 and S = 29.7 y. The RMSD is 0.1183 x 10⁹ bbl / y, which is a point on the lower curve of Fig. 2 for Q_oo = 240 x 10⁹ bbl.

Figure 3 shows the data, the primary Gaussian, and the secondary Gaussian that is the best fit to the data for an assumed value of the EUR, of 250 x 10⁹ bbl.

The results of a detailed exploration of the date of the peak of oil production in the U.S. as a function of the assumed size of Q_oo is shown in Fig. 4. The slope of a chord between the ends of the plotted curve suggests that the date of peak production in the U.S. is delayed about 39 days for every billion barrels of new oil that is added to the estimated size of the EUR of the U.S. The historical data show that the peak production of oil in the U.S. was in 1970 with a smaller peak in 1984.

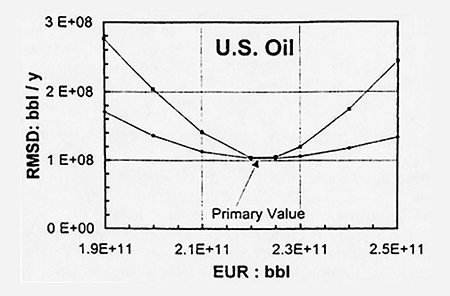

Figure 2. For U.S. oil, the upper curve shows the values of the RMSD when S and t_M have their primary values of 27.555 years and 1975.6 respectively, and the assumed value of the EUR (Q_oo) of the U.S. is changed systematically about its primary value of 0.2222 x 10¹² bbl. (0.22 trillion bbl) The lower curve shows the values of the RMSD when, for each non-primary value of the EUR, one systematically varies S and t_M until one locates a secondary minimum value of the RMSD. The quantities S and t_M have the same value (their primary values) for all points on the upper curve; on the lower curve their values change from point to point. The two curves share the same minimum at the primary value of (EUR = 0.2222 x 10¹² bbl).

Sensitivity of the RMSD to changes of S and t_M

If the three parameters are set at their primary values (minimum RMSD), and if then the assumed date of the peak (t_M) is moved from 1975.6 to 1980, the RMSD is found to increase by about 80%. If the three parameters are set at their primary values, and if then the assumed value of S is increased from 27.56 years to 30.00 years, the RMSD is found to increase by about 52%.

The Gaussian applied to world oil

The data for world oil production (USEIA, 1995) and the primary Gaussian that best fits the data are shown in Fig. 5.

The value of the EUR that gives the minimum RMSD for world oil is 1.115 x 10¹² bbl, which is much smaller than the value (2.0 x 10¹² bbl) that Hubbert used in 1972. This discrepancy points out a limitation of this analysis. In contrast to the case of U.S. oil, the world data do not yet show a long and persistent downturn in production. As a consequence, a wider range of values of the EUR can give plausible fits to the data. This is illustrated in Fig. 6. For assumed values of the EUR that are less than the primary value, the RMSD rises very rapidly, but for values of the EUR that are greater than the primary value, the RMSD rises only slowly. If a production maximum has not been passed, this analysis tends strongly to reject assumed values of the EUR that are less than the primary value, but the analysis does not discriminate strongly among values of the EUR that are larger than the primary value.

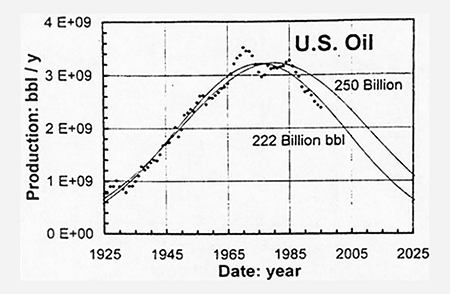

Figure 3. The data for U.S. oil production and two Gaussians are shown: the left one is the primary Gaussian in which all three parameters are adjusted to give the minimum RMSD between the data and the curve. The value of the EUR for this best-fit is 0.2222 x 10¹² bbl. The right curve is a secondary Gaussian for the case where the EUR is arbitrarily given the non-primary value of 0.250 x 10¹² bbl, and then the two parameters S and t_M were adjusted to find the values that gave the secondary minimum RMSD. The right curve represents a value of the EUR that is 12.5% higher than the primary value of the EUR. For the right curve, the RMSD of the fit of the Gaussian to the data is approximately 15% higher than it is for the fit of the primary Gaussian on the left.

If one traces out the date t_M of the peak of the secondary Gaussians corresponding to a series of increasing values assumed for the EUR, one gets the curve shown in Fig. 7. Reading from Fig. 7 it can be seen that for values of the EUR of 2.0 x 10¹² bbl, 3.0 x 10¹² bbl, and 4.0 x 10¹² bbl, peak production is indicated for the years 2004, 2019, and 2030 respectively.

The average slope of the curve of Fig. 7 shows that for every new billion barrels of oil added to the estimate of the world's EUR, the date of the world peak production is delayed approximately 5.5 days! Doubling the world EUR moves the date of the maximum back by about 26 years!

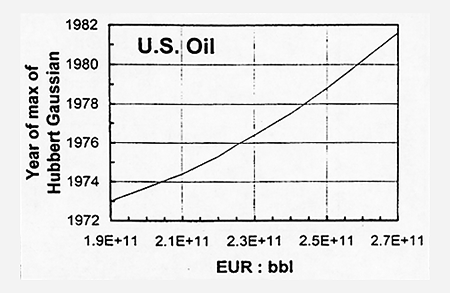

Figure 4. As one increases the assumed EUR for the U.S., the date of the peak of the secondary Gaussians moves to later times; the delay is approximately 39 days for each billion barrels of oil that are added to the estimate of the EUR of the U.S.

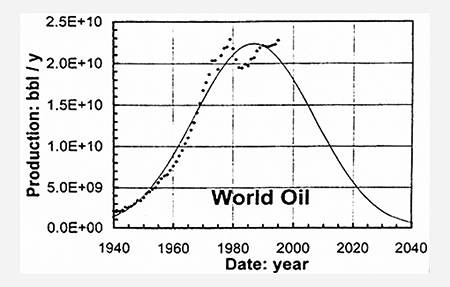

Figure 5. The data for world oil production are compared with the best-fit primary Gaussian. Because the world data do not yet show a prolonged downturn, this analysis is very insensitive to the size of the parameter Q_oo, (the EUR) which from this fit is lower than many geological estimates. Curves for more widely accepted geological estimates of the EUR are shown in Fig. 8. The large fluctuations in the data are due to political and economic factors.

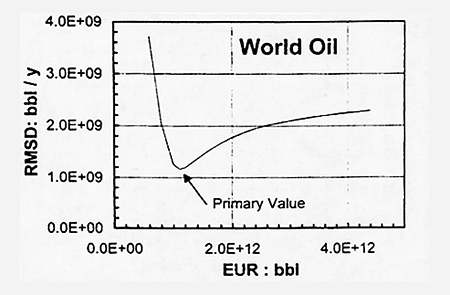

Figure 6. The RMSDs of the secondary Gaussians for world oil are shown as a function of the assumed values of the world EUR. The primary Gaussian that is shown in Fig. 5 is characterized by values of the EUR and the RMSD at the minimum of this curve. For assumed values of the EUR that are less than the minimum, the RMSD deteriorates (rises) rapidly, while for values larger than the minimum, the RMSD is seen to rise more slowly. The reason for this assymetry is the fact that the world oil production data have not yet shown any prolonged downturn. This should be compared with the lower curve of Fig. 2 which is the same plot for U.S. oil where there has been a long downturn in production and where the RMSD rise around the minimum is more symmetrical.

Figure 8 shows the data and the best-fit secondary Gaussians for these three assumed values of the EUR. Three different values of the EUR are listed in the upper left and the years of the corresponding peak production are given. It should be noted that the highest curve in Fig. 8 assumes not only that the EUR is 4.0 x 10¹² bbl, but that the world production capability and world demand can rise to 39 x 10⁹ bbl / yr by the year 2030.

Per capita oil production

In Fig. 9 one sees two curves of world daily per capita production of oil which are normalized to have the same value in the year 1920. The upper curve assumes that the world population has not changed since 1920, while the lower curve takes account of the growth of world population since 1920, and so it shows the actual per capita oil production. At the end of 1995, world per capita oil production was less than two liters per person per day! The world population is increasing (1996) by about 1.5% per year (~90 million per year), so world oil production will have to climb by 1.5% per year just in order to keep the per capita world oil production constant.

For the U.S., the maximum per capita oil production was approximately 7 liters per day in 1970 which has declined to approximately 4 liters per day in 1995.

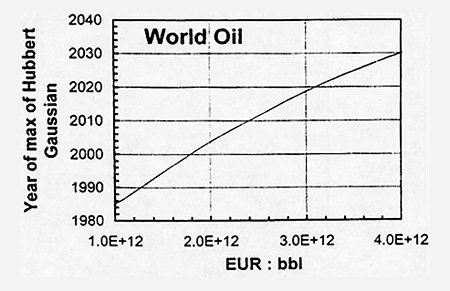

Figure 7. As one follows the secondary Gaussians for world oil for increasing assumed values of the EUR, the location of the peaks of the best-fit secondary Gaussians move to later times at a rate of approximately 5.5 days for each billion barrels of oil added to the EUR. For assumed values of the EUR of 2.0 x 10¹² bbl, 3.0 x 10¹² bbl, and 4.0 x 10¹² bbl, this analysis suggests that the peaks would occur respectively in the years 2004, 2019, and 2030 and the respective peak productions would be 26.5 x 10⁹, 33 x 10⁹, and 39.5 x 10⁹ bbl per year.

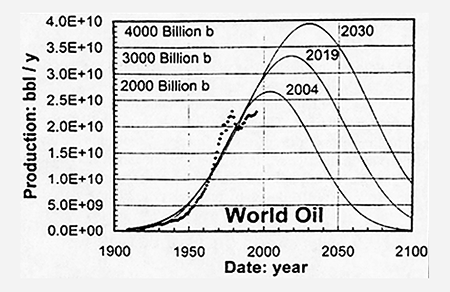

Figure 8. The world oil production data are shown, along with three best-fit secondary Gaussians corresponding to values of the EUR of 2.0 x 10¹² bbl, 3.0 x 10¹² bbl, and 4.0 x l0¹² bbl, with respective dates of peak production of 2004, 2019, and 2030.

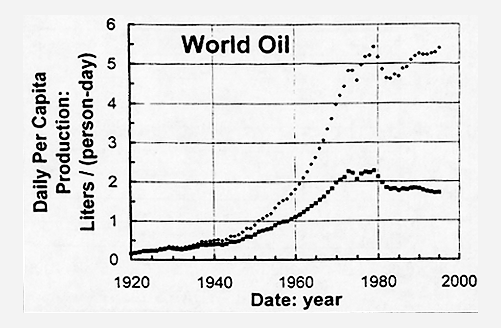

Figure 9. The lower curve shows the recent history of the per capita world production of oil which had its largest value of approximately 2.2 liters per (person-day) in the 1970s and which has fallen to approximately 1.7 liters per (person-day) by 1995. The upper curve shows what the recent history would have been if the world population had not changed since 1920. In the period from 1920 to 1995 the world population has had an average growth rate of approximately 1.5% per year which has resulted in the population tripling in these 75 years.

Reserves-to-production ratios

The ratio of current reserves (bbl) to current annual production (bbl / y) is the number of years the current reserves would last if the current annual production continued unchanged. This number is widely quoted as an approximate indication of the future of oil production. If the ratio has the value of 40 years, it means that the reserves would last 40 years "at the present rate of production," (Bartlett, 1978) which suggests to some that the world production might remain constant for 40 years and then abruptly drop to zero. Rates of production are not constant over long periods, so this widely quoted ratio is a meaningless indicator of the future course of oil production.

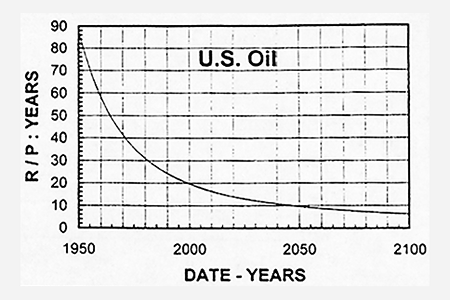

Figure 10. This curve shows the reserves-to-production ratio for U.S. oil, and it is derived from the primary Gaussian for U.S. oil. A point on the curve shows, for that date, how many years U.S. oil would last if production were held constant at the value it had on that date. For example, in the year 1980, the remaining reserves of U.S. oil would last approximately 30 years if production remained unchanged from its 1980 value: production would then drop abruptly to zero.

Theoretical curves that suggest the future path of the reserves-to-production ratio can be calculated for each of the best-fit Gaussians. Figure 10 shows the predicted reserves-to-production ratio as a function of time for the primary Gaussian of Fig. 1 for U.S. oil production. Figure 11 shows three curves of the predicted reserves-to-production ratios for world oil production that correspond to the three Gaussians of Fig. 8.

One notes that for a fixed value of the EUR, the reserves-to-production ratio decreases monotonically but at a rate that is less rapid than one year each year. New enlarged estimates of the value of the EUR could slow or temporarily reverse the decline in the actual ratio.

In Fig. 11 one can see that for EUR = 2.0 x 10¹² bbl, the world reserves-to-production ratio in the year 2000 can be estimated to be approximately 42 years.

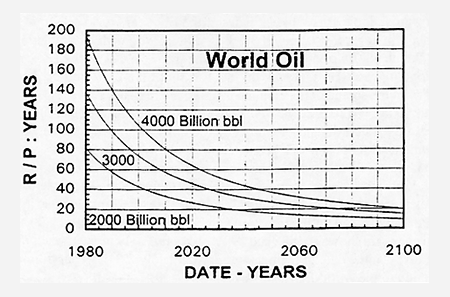

Figure 11. These curves show how the reserves-to-production ratios will vary with time for each of the three Gaussians of Fig. 8 which correspond to world EURs of 2.0, 3.0, and 4.0 x 10¹² bbl. For example, if the world EUR is 3000 billion barrels, the reserves-to-production ratio in the year 2000 would be expected to be approximately 74 years.

Sustainability

The term "sustainability" is frequently invoked to describe a society that can continue many generations into the future. (Bartlett, 1997-98) Figures 1 and 8 suggest that current rates of consumption of oil cannot continue for many generations in the future, so that present U.S. and world rates of consumption of oil are not sustainable.

Comparisons with other analysis

Because of the critical importance of oil to modern society, many studies have yielded estimates of the size of the remaining oil resources, and of the probable future paths of U.S. and world oil production. Only a few are cited here.

Campbell & Laherrere (1998) report that "Global production of conventional oil will begin to decline sooner than most people think, probably within 10 years." (p.78) "Using several different techniques to estimate the current reserves of conventional oil and the amount still left to be discovered, we conclude that the [peak will be reached and the] decline will begin before 2010." (p.79) From Figure 7 one sees that if the world EUR is 2.4 x 10¹² bbl, the year of the maximum of the Hubbert Gaussian is indicated to be in 2010.

Edwards (1997) has given an extensive summary of the works of others and has added his own detailed analysis of the long-term situations in the U.S. and the world in regard to all fossil fuels. For U.S. oil, he cites (his Table 4) three estimates of the EUR whose average is 277 x 10⁹ bbl. This is considerably higher than the 222.2 x 10⁹ bbl that is yielded by this analysis. The secondary curve for 277 x 10⁹ bbl would be some distance to the right of the secondary curve shown in Fig. 3.

Edwards' Table 1 lists 14 estimates of the EUR for world oil ranging from a low of 1.65 x 10¹² bbl to a high of 3.2 x 10¹² bbl, along with 11 predictions of the date of the peak of world oil production. The mean values of the EUR and their corresponding peak dates, along with the RMSD of the EUR and the peak dates, derived from the spread of the tabluated values, are: EUR = (2.4 +/- 0.4) x 10¹² bbl, and Peak Date = (2010 +/- 11 yrs). Perhaps it is only fortuitous, but these two numbers are the coordinates of a point on the line of Fig. 7, and hence they are in agreement with the analysis given here.

Ivanhoe (1995) shows Hubbert curves for discoveries and production for both the U.S. and the world, and then shows graphically the probable production scenarios for the future. In his Fig.3 he shows curves from Hubbert which he has reworked for world oil production based on EURs of 1.5 x 1012 and 2.0 x 10¹² bbl. The two peaks are shown in 1988 and 1996 respectively. Ivanhoe's peaks thus show that the delay in the date of the peak is approximately 5.8 days per billion barrels of oil added to the world EUR.

Ivanhoe has written (1997) that the critical date when global oil demand will exceed world production will fall sometime between 2000 and 2010.

MacKenzie (1996) has done a computer analysis of world oil which he has combined with a review of published estimates of oil reserves. He concludes that:

At the low end, for EUR oil equal to 1.8 x 10¹² bbl, peaking could occur as early as 2007; at the high end (2.3 x10¹² bbl), peaking could occur around 2014. (An implausibly high 2.6 x 1012 bbl for EUR would postpone peaking only another five years - to 2019).

MacKenzie's computer-generated estimates can be compared with the estimates read from Fig. 7 where for EURs of 1.8 x 10¹², 2.3 x 10¹², and 2.6 x 10¹² bbl, the predicted peak dates are 2000, 2009, and 2013.

From his analysis, MacKenzie has produced his estimate of the date of peak world production vs EUR which is given in his Fig. 13. His predicted peak dates are 6 to 8 years later than those given here in Fig. 7, but his curve has the same slope as Fig. 7, namely 5.5 days delay per billion barrels added to the estimate of the EUR.

Masters, Attanasi & Root have estimated the world EUR of petroleum to be 2.3 x 10¹² bbl. They note that this value:

... is limited by our concepts of world petroleum geology and our understanding of specific basins; nonetheless, continued expansion of exploration activity, around the world, has resulted in only minimal adjustments to our quantitative understanding of ultimate resources.

They also indicate that:

Unconventional resources are present in large quantities, in particular in the Western Hemisphere, and are of a dimension to substantially contribute to world reserves should economic conditions permit.

Adelman & Lynch (1997) point out that even as oil is produced and used, estimates of reserves of oil generally to rise with time so that a "fixed view of resource limits creates undue pessimism." Their optimism is based on the past history of increases in the value of the world EUR. Because of the increases in reserves that they see, they indicate their belief that it is misleading to think of the EUR as a fixed quantity, so that analyses such as the one presented here are seriously misleading.

We can note that according to Fig. 7, an increase in the world EUR of 66 billion bbl would delay the date of the maximum of the Gaussian by approximately one year.

Conclusion

The work reported here is an analytical study of the data on U.S. and world production of oil. The study has no geological content beyond that of the values of the EUR. The results are internally precise and self-consistent, and hence are reproducible, and they are consistent with the results of a number of other studies. Studies based on assumed fixed values of the EURs are often criticized by noting that values of the EURs tend to increase with time. Increasing estimates of the EUR of the U.S. can be accomodated in this analysis by refering to Figs. 3 and 4. The consequences of increasing estimates of the world EUR can be evaluated by examination of Figs. 7 and 8.

Prices and the consequences of the law of supply and demand will be significant short-term determinants of the course of oil production in the future. The effects of these are not modeled in this analysis.

Only time will tell the degree to which the results of this analysis may or may not be reasonable.

Acknowledgements

This work originated from discussions with Professors John D. Edwards

(Geology) and Robert A. Ristinen (Physics). I thank them for their insight and help. Richard C. Duncan has very kindly shared with me the results of a number of his works. In addition, I wish to express my great appreciation to Steve Anderson, L.F. (Buzz) Ivanhoe, James J. MacKenzie, Charles D. Masters, David Root, and Walter Youngquist for their many valuable suggestions.

References

Adelman, M. A. and Lynch, M. C., 1997, Fixed view of resource limit creates undue pessimism: Oil & Gas Journal, v. 95, no. 14, p. 56-60

Bartlett, A. A., 1978, Forgotten Fundamentals of the Energy Crisis: Am. Jour. of Phys., v. 46, p. 876-888

Bartlett, A. A., 1997-98, Reflections on Sustainability, population growth, and the environment - revisited: Renewable Resources Jour., v. 15, no. 4, Winter 1997-1998, p. 6-23

Campbell, C. J. and Laherrere, J. H., 1998, The end of cheap oil: Scientific American, v. 278, no.3, p. 78-83

Edwards, J. D., 1997, Crude oil and alternate energy production forecasts for the twenty-first century; the end of the hydrocarbon era: Am. Assoc. Petroleum Geologists, Bull., v. 81, no. 8, p. 1292-1305

Much of this work was available earlier in a report from the Energy and Minerals Applied Research Center, (EMARC) (1996), Department of Geological Sciences, University of Colorado at Boulder, 80309-0250 Hubbert, M. K., 1974, U.S. energy resources, a review as of 1972; A background paper prepared at the request of Henry M. Jackson, Chairman, Committee on Interior and Insular Affairs, United States Senate, Pursuant to Senate Resolution 45, A National Fuels and Energy Policy Study: Serial No. 93 - 40 (92 - 75), Part 1. U.S. Government Printing Office, Washington, 1974, p. 186

Hubbert, M.K. , 1982, Oil and gas supply modeling: NBS special publication 631, U.S. Department of Commerce / National Bureau of Standards (now the National Institute of Standards and Technology, NIST) May 1982. p. 90

Ivanhoe, L.F., 1995, Future world oil supplies: there is a finite limit,

World Oil, v. 216, no. 10, p. 77-88.

Ivanhoe, L.F., 1997, King Hubbert - updated; Hubbert Center Newsletter, No. 97 / 1

Colorado School of Mines, Golden, CO

MacKenzie, J.J., 1996, Oil as a finite resource: When is global production likely to peak? World Resources Institute, 1709 New York Ave. NW, Washington, D.C., 20006

Masters, C. D., Attanasi, E.D., Root, D.H., 1994, World petroleum assessment and analysis: Proceedings of the 14th World Petroleum Congress, John Wiley & Sons, New York City [also see The Energy Insitiute to Publish Proceedings from World Petroleum Congress

(USEIA, 1995) U.S. Energy Information Administration, Annual Energy Review, 1995: DOE / EIA (95)

The U.S. production data are from the column "Crude Oil" of Table 5.1, p. 141

The world production data are from the column "World" of Table 11.5, p. 297
